300 Series hall effect portable Gauss-Meters

Low Cost, High Quality DC Gaussmeters, Highly Recommended!

Made in the U.S.A. by Integrity Design & Research Corp.

Typical Applications include Measurements of the Earth's field vectors, Air shipment inspection, Mapping and recording field perturbations, Magnet classification, Analysis of magnetic circuitry and components, Magnetic Resonance Imaging (MRI) and Measuring residual fields.

A picture of the DC hall-effect gaussmeter IDR-309-T, magnet measurement DC Gauss Meter Types:
Status: In Stock

Available w/ transverse, axial and ultra thin probe

User Manual:  Click here for the IDR-309/329 PDF user manual

Data sheet:  Click here for the IDR-309: DC Gaussmeter data sheet

  1. Gaussmeter model #: IDR-309-T (w/transverse hall probe): ..............$525.00
  2. Gaussmeter model #: IDR-309-T-UL (w/ ultra thin probe): ...........$525
  3. Gaussmeter model #: IDR-309-A (w/Axial hall probe): ..............$525.00

  4. Gaussmeter model #: IDR-309-T-A (w/transverse & Axial hall probe): .....$650.00 Amazing Sale! Buy now for BIG savings
  5. Transverse Replacement Probe model #: IDR-310-T: ...........$150.00
    Axial Replacement Probe model #: IDR-310-A:........ $15
    0.00

    Ultra Thin  Transverse Replacement  Probe model #: IDR-310-T-UL  ...........$150.00 (w/ max. thickness less than  0.02" & width < 0.135")

    • Similar features as the Kilogaussmeter specified below except the range
    • Range: +/-2,+/- 20, +/-200, +/-2000 Gauss
    • Excellent Resolution: @ scale 2 G: 1 mG, @ scale 20 G: 10 mG, @ scale 200 G: 0.1 G & @ scale 2000 G: 1 G.
    • Typical application: Residual magnetic field, Magnetic Resonance Imaging (MRI), classify magnets, etc.

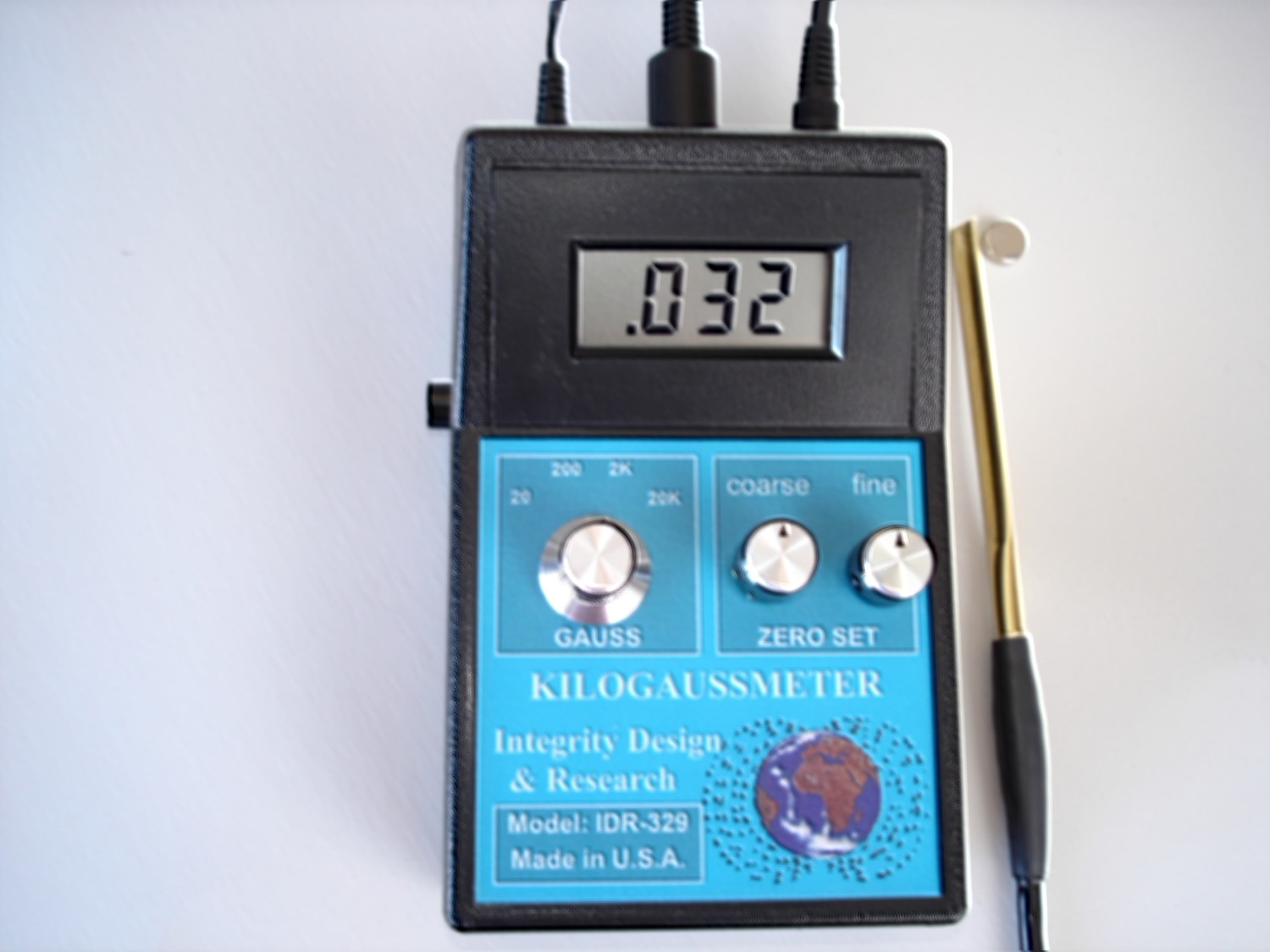

A picture of the DC hall-effect Kilogaussmeter IDR-329-T, magnet measurement DC Gauss Meter Types:
Higher range DC Gauss Meter Types:
Available w/ transverse, axial and ultra thin probe
Status: In Stock

Data sheet:  Click here for the IDR-329: DC KiloGaussmeter data sheet

  1. KiloGaussmeter model #: IDR-329-T (w/transverse hall probe) ........$525.00
  2. KiloGaussmeter model #:IDR-329-T-UL
    (w/ ultra thin probe).......$525.00
  3. KiloGaussmeter model #: IDR-329-A (w/Axial hall probe) .............$525.00
  4. KiloGaussmeter model #:IDR-329-T-A (w/transverse & Axial hall probe) ....... $650.00 Amazing Sale! Buy now for BIG savings
  5. Transverse Replacement Probe model#:         IDR-310-T ........$150.00
    Axial Replacement Probe model #: IDR-310-A
      ........$150.00

    Ultra Thin  Transverse Replacement Probe model #: IDR-310-T-UL ...........$150.00 (w/ max. thickness less than  0.02" & width < 0.135")



    Kilogaussmeter Specifications:

    • Portable w/ Dimensions: 5.8"x3.6"x2.5"
    • Range:  +/-(20 G, 200 G, 2kG, 20kG)
    • Bandwidth: 68HZ at 3db
    • Comes with 9v DC adaptor & hard carrying case
    • Analog Output: +/-200 mV DC FS
    • 3 1/2 digit bipolar display
    • Powered optional either by 9v battery or AC adaptor
    • 3% error guarantee
    • Resolution: @ scale 20 G: 10 mG, @ scale 200 G: 0.1 G, @ scale 2 KG: 1 G & @ scale 20 KG: 10 G.
    • High linearity Hall effect transverse probe w/ 3.5' shielded cable
    • Hall effect axial probe w/3.5' shielded cable is optional
    • 2 Years Parts & Labor warranty
    • Made in the USA
    • Typical application: Residual magnetic field, classify magnets, Audio speaker magnet, etc.

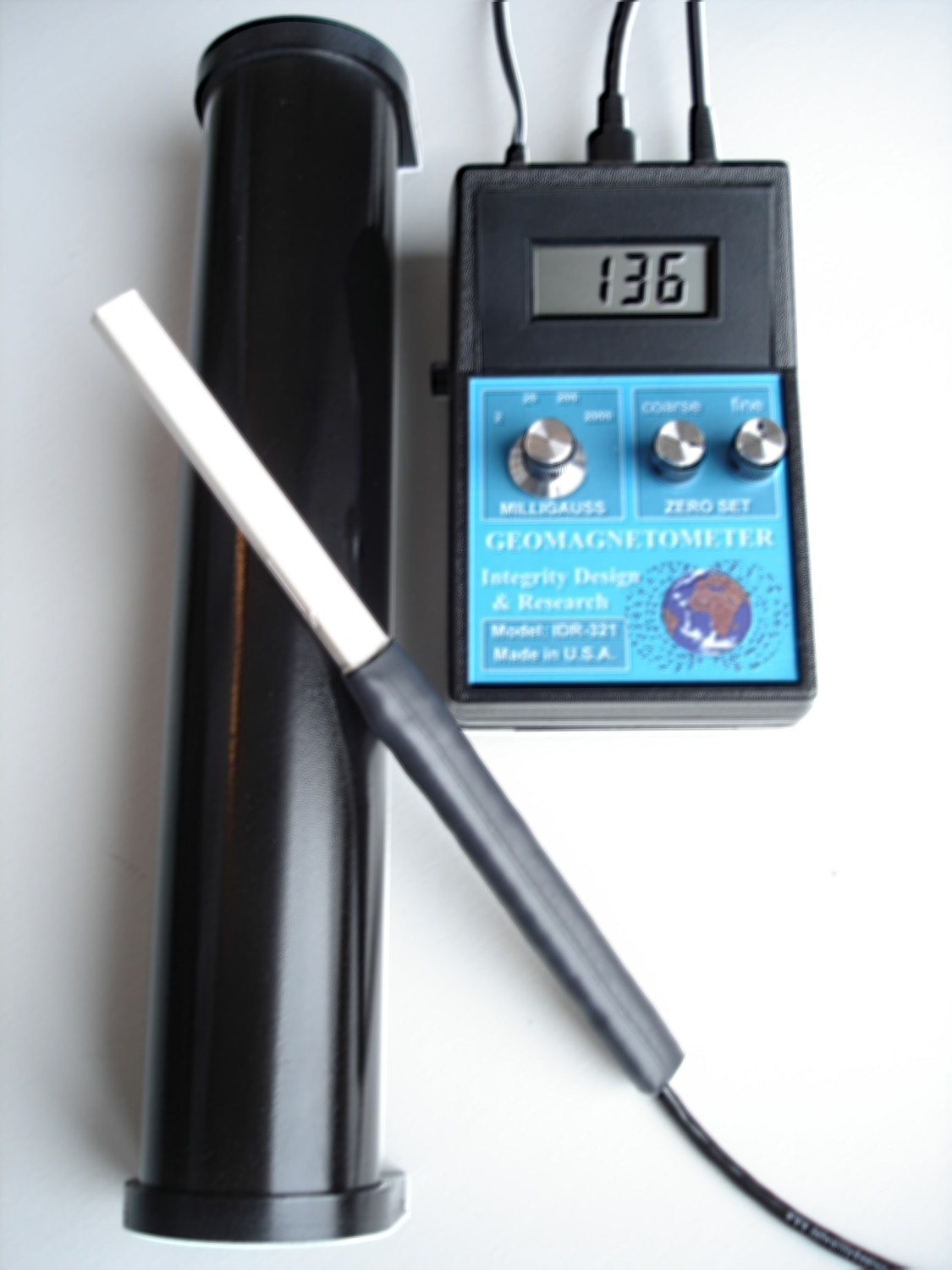

A picture of the DC milli gauss meter (Geomagnetometer with the Zero Gauss Chamber Geomagnetometer: IDR-321(w/Hall Probe) ........$750.00
Replacement magna probe: IDR-311...... $350.00

Status: In Stock
Data sheet:  Click here for the IDR-321: DC Milligaussmeter data sheet

User Manual:  Click here for the IDR-321: DC Milligaussmeter PDF user manual


Zero Gauss Chamber IDR-800:...... $350.00
It is recommended with the meter

Specifications:

  • Portable w/ Dimensions: 5.8"*3.6"*2.5"
  • Range: 2, 20, 200, 2000 Milligauss
  • recorder output
  • Optional AC adaptor
  • 2% error guarantee
  • Portable & a hard case is included
  • Bandwidth: 68 Hertz at 3db
  • Resolution: @ scale 2: 1 uG, @ scale 20: 10 uG, @ scale 200: 100 uG & @ scale 2000 mG: 1mG.
  • Battery Life: About 15 hours continuous use with 9V alkaline .
  • Typical applications: Earth's field vector measurement, air shipment inspection, mapping & recording field perturbations, etc.
  • 2 Years Parts & Labor warranty
  • Made in the USA
  • Sensor Probe: High sensitivity hall generator w/  FWBELL model BH-850

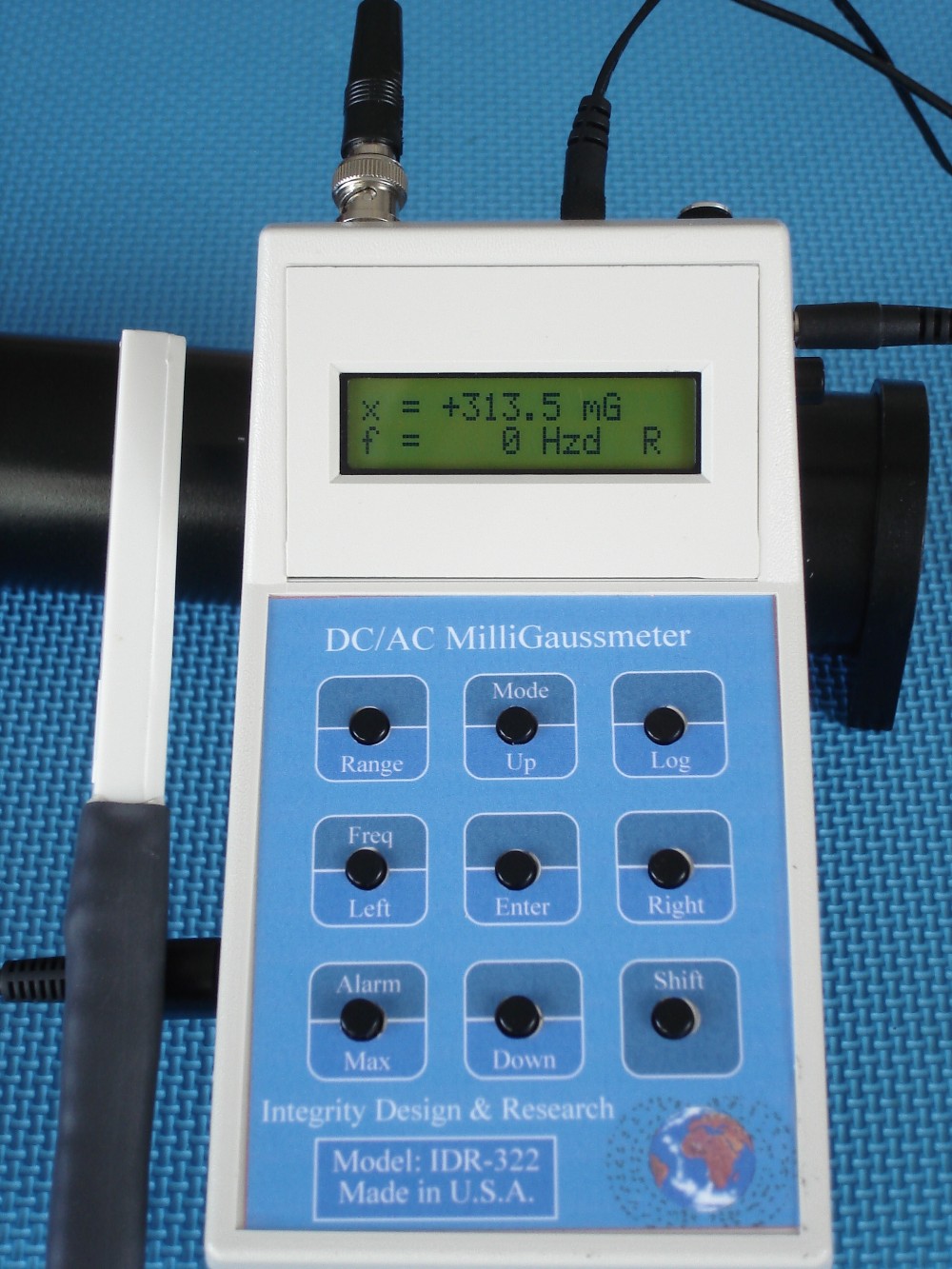

IDR-322: AC/DC MilliGaussmeter with data logger

Status: In Stock


Data sheet:  Click here for the IDR-322:AC/DC MilliGaussmeter data sheet

User Manual:  Click here for the IDR-325: AC/DC milligaussmeter PDF user manual

New products

Features:

  • 16 character x 2 line display

  • Optional 6V DC adaptor provided

  • 3 % error guarantee

  • Frequency Response (BW): DC -750 Hz (Tested)

  • DC, AC: (5 Hz -  750 Hz) and AC + DC: (0 – 750 Hz) modes

  • Auto or manual ranging with auditory alarm

  •  Datalogs up to 32,000 data points

  • Record data w/ RS-232 communication port

  • Resolution @ Scales: 4 mG:1 uG, 40 mG:10 uG, 400 mG: 0.1mG, 4 G: 1 mG

  • Made in the USA

  • Typical application: Earth’s field vector measurements, air shipment inspection, Electric motor, coils and solenoids, AC EMF interferences,  MRI, industrial, scientific & medical equipments, low residual magnetic fields, Breaks in magnetized steel cables,etc.

    1. MilliGaussmeter model #: IDR-322 (w/magnaprobe) ..............$1695.00

      Zero Gauss Chamber model #: IDR-800.......$350 (it is recommended with the meter)

      Magnaprobe Replacement w/ Probe model #: IDR-322-M ...........$495.00

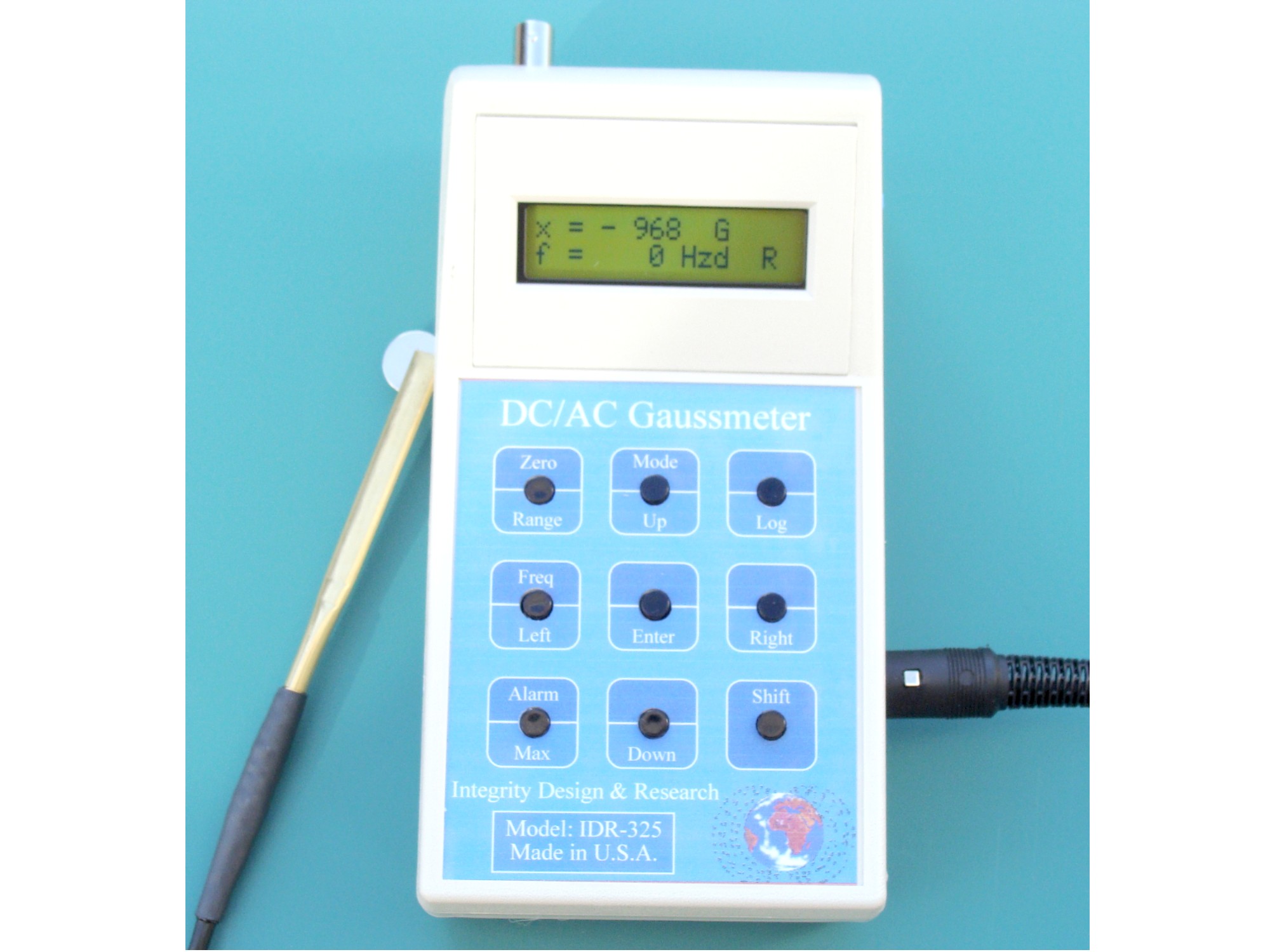

    IDR-325: AC/DC Gaussmeter with data logger

    Status: In Stock


    Data sheet:  Click here for the IDR-325:AC/DC Gaussmeter data sheet

    User Manual:  Click here for the IDR-325: AC/DC Gaussmeter PDF user manual

    Available w/ transverse, axial and  ultra thin probe

    New products

    Features:

  • 16 character x 2 line display

  • Optional 6V DC adaptor provided

  • 3 % error guarantee

  • Frequency Response (BW): DC -1 kHz (Tested)

  • DC, AC: (20 Hz - 1 kHz) and AC + DC: (0 – 1 kHz) modes

  • Auto or manual ranging with auditory alarm

  •  Data logs up to 32,000 data points

  • Record data w/ RS-232 communication port

  • Resolution @ Scales: 300 G:100 mG, 3 kG:1 G, 30 kG:10 G

  • Made in the USA

    1. Gaussmeter model #: IDR-325-T (w/transverse hall probe) ..............$1195.00
    2. Gaussmeter model #: IDR-325-A (w/Axial hall probe) ..............$1195.00
    3. Gaussmeter model #: IDR-325-T-UL (w/Ultra Thin hall probe) .......$1195.00
    4. Gaussmeter model #: IDR-325-T-A (w/transverse & Axial hall probe) .....$1445.00 Amazing Sale! Buy now for BIG savings
    5. Transverse Replacement Probe model #: IDR-325P-T ...........$250.00

      Ultra Thin Replacement Probe model #: IDR-325P-T-UL ...........$250.00 (Thickness less than 0.02" & width < 0.125")
      Axial Replacement Probe model #: IDR-325P-A ........ $250.00



    DMM w/ PC Interface Wonderful low price on this True RMS multimeter datalogs up to 43,000 data points at capture rates as fast as 20 times/second! You can use it as a stand alone or connect it to your PC with the built in RS-232 serial interface to collect and analyze long term data on AC/DC voltage (0.01mV -1000V), AC/DC current(0.1UA to 20A), Resistance(0.01Ohm to 50MOhm), Frequency (10Hz - 125kHz), Capacitance(0.01nF to 999Uf) and Diode test! Can be used with any analog output like Geomagnetometer(IDR-321), DC Gaussmeter(IDR-309 & IDR-329) & AC Milligaussmter(IDR-109, IDR-119, IDR28, IDR-28), etc. Includes powerful Windows based software which allows users to determine sampling rate, live Analog and digital displays on the PC screen, plot data with Max/Min values, easily Save data to a file, limit comparator with GO/No Go displays and alarm. Requires minimum 16MB RAM. 3-years mfr. warrantee.
    Extech DMM with PC Interface (IDR-ML720) ..................... $299.00


    Connector Cables:

    Perfect for connecting DMM to meters with 1/8" jack output. 1/8" plug on one end, dual banana plug on other end.
    1/8" to Dual Banana Connector Cable (IDR-1/8-Ban) ......... $14.95

    Perfect for connecting DMM to meters with RCA jack output. RCA plug on one end, dual banana plug on other end.
    RCA to Dual Banana Connector Cable (IDR-RCA-Ban) ........ $14.95

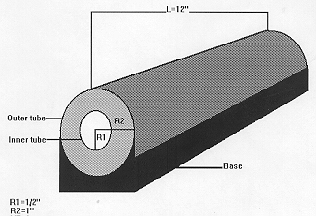

    A picture of the Zero-DC Gauss chamber Zero Gauss Chamber
    Status: In Stock
    IDR-800 $350.00
    Features:
    • Two cylindrical tubes are equal in length (12"), one is inside the other, both of them are closed at one end. At the other end, the inner tube is open (Radius=1").
    • The cylindrical tubes are made from high permeability material.
    • The magnetic field inside the inner tube is almost annulled.
    • Optional use with the Geomagnetometer IDR-321 to provide a zero gauss (magnetic field-free environment) reference, enabling you to take absolute readings of the ambient magnetic field (the Earth's magnetic field is typically around 500 mG)
    • Made in the USA

    5100 Series hall effect portable Gauss/Tesla-Meters

    Status: In Stock

                    5100 Series Probes include  4"axial & transverse probes: Status in Stock

                    5000 Series Gaussmeter Probes include  4"axial & transverse probes: Status in Stock

    Products are made by Sypris Test & Measurement formally known F.W.Bell



    AC/DC Gaussmeter made by FWBELL

    IDR-fw5170 hall effect Gaussmeter modelThe 5100 Series hall effect portable Gauss/Tesla-Meters represent the recent design from the world leader in magnetic AC & DC measuring equipment. This new design incorporates the use of digital signal processing technology making it the world's first hand-held gaussmeter to have a digital signal processor (DSP) on board. F.W.Bell's exclusive Dynamic Probe Connection allows measurements from 0 to 30 KG with basic accuracy of 1%. Typical applications include: Magnetic Testing & Classification, DC & AC Motor Testing, Magnetic Field Mapping, Residual Field Testing, Relay and Solenoid Inspection. All instruments are CE Compliant.
    The 5100 Series Hand-Held Gauss/Tesla-Meters' built-in software eliminates the need for complex calibration procedures. User prompts on the custom formatted LCD allow fast, simple push button operation. All models (5170 & 5180) come equipped with a detachable transverse or axial probe, zero gauss chamber, instruction manual, hard carrying case, four AA batteries and Adaptor. Axial, ultra thin transverse and other style probes are available as options.
      Key features also include:
    • Auto Zero: Yes, the best accuracy in it's class
    • Data logging capability, Min/Max/Peak Hold
    • 100X lower resolution (with low-field probe), Auto Range
    • Frequency Response 2X better than Competitor, relative Mode
    • The only handheld meter with DSP, Universal Serial Bus Interface
    • 4 AA batteries or external adapter
    • size  (length*width*height): 6.9"*3.9"*1.44"

    IDR-fw5170 Gaussmeter model
      Key features for 5170 also include:
    • Auto Zero: Yes, Basic accuracy: 2%
    • Min/Max: Yes, True RMS: Yes, Auto Range: YES, Sampling Rate: 4 Samples/sec
    • Frequency Bandwidth: DC-20 KHZ, Ranges(3): Low Range: 200 G, Mid Range: 2 KG, High Range: 20 KG, Ultra Low Range (Low-field probe only): 1 G
    • Resolution: Low Range: 0.1 G (10 uT), Mid Range: 1.0 G (100 uT), High Range: 10 G(1 mT), Ultra Low Range (Low-field probe only): 1mG(0.1uT)
    • Display: 3 1/2 digit LCD display, Readings: Either Gauss, Tesla
    • Operating Temperature 0oC To + 50oC & Storage: -25oC To +70oC
    • 4 AA batteries or +5VDC Regulator external adapter
    • size (length*width*height): 6.9"(175.26mm)*3.9"(99.06mm)*1.44"(36.57mm)

      AC&DC GAUSSMETER Model:
      IDR-fw5170......$995.00:
        In Stock


       FWBELL part no.: 5170 (w/ either transverse or axial probe plus all the accessories)

                    5170 Series Gaussmeter Probes:

               SAH17-1904......$315: In stock (4" axial)

               STH17-0404.....$315: in Stock (4" transverse)

             MOS51-3204: Low Field Axial Probe...               $775.00: In Stock

    5070 Series Gaussmeter Probes

             STH57-0404 .....$365: In stock (4" transverse)
             SAH57-1904 .....$365 :In stock (4" Axial)

    Please call us for other selections of probes

    IDR-fw5180 Gaussmeter model
      Key features for 5180 also include:
    • Auto Zero: Yes, Basic accuracy: 1%
    • Min/Max: Yes, True RMS: Yes, Auto Range: YES, Sampling Rate: 4/sec
    • True Peak hold: Yes, Relative Mode: Yes, Analog output: 200K samples/sec, Communication Port: USB(1 samples/sec)
    • Frequency Bandwidth: DC-30KHZ, Ranges: Low Range: 300 G, Mid Range: 3 KG, High Range: 30 KG, Ultra Low Range(Low-field probe only): 1G
    • Resolution: Low Range: 0.1 G (10 uT), Mid Range: 1.0 G (100 uT ), High Range: 10 G(1 mT), Ultra Low Range(Low-field probe only): 1mG(0.1 uT)
    • Display: 3 1/2 digit LCD display, Readings: Either Gauss, Tesla or Ampere/Meters
    • Analog Output; +/-3V F.S., Communication Port: USB(1 Samples/sec)
    • Operating Temperature 0oC To + 50oC & Storage: -20oC To +60oC
    • 4 AA batteries or external adapter
    • size (length*width*height): 6.9"(175.26mm)*3.9"(99.06mm)*1.44"(36.57mm)

      AC/DC GAUSSMETER Model:
      IDR-fw5180......$1350.00:
      In Stock with FWBELL part No.: 5180
      This model come equipped with a detachable transverse or axial probe, Zero Gauss chamber, instruction manual, hard carrying case, domestic adaptor and four AA batteries

       5180 Series Gaussmeter Probes:

      SAD18-1904......$320: In stock (4" Axial)
      SAD18-1902......$320: In stock (2" Axial)

      MOS51-3204: Low Field Axial Probe... $775.00:In Stock

      STD18-0404....$320: In stock (4" Rigid Glass Epoxy Transverse probe)
      STD18-0402....$320: In stock (2" Rigid Glass Epoxy Transverse probe)
      HTD18-0604....$325: In stock (4" Hard Aluminum Transverse probe)

       5080 Series Gaussmeter & Probes:

      Model #: 5080 -----$1050:  AC/DC Gaussmeter

      w/ transverse probe & all the accessories. Status: In stock

      STD58-0404....$375: In stock (4" Transverse)

      SAD58-1904....$375: In stock (4" Axial)

      Please call us for other selections of probes

    MAGNETIC SHIELDING FOIL

    "High permeability Material excellent for Shielding DC, ELF & VLF Magnetic Fields"

    A picture of a high permeability shielding materials

    Magnetic shielding material protects electronic circuitry, electron beam in a cathode ray tube like VDT, TV, computer etc. and also it separates the victims from magnetic interference (EMI). Usually, the sources of this interference are permanent magnets, transformers, motors, solenoids and cables. It is now available at affordable prices for home and office use. This ferromagnetic alloy (80% nickel, 15% iron, 4.2% molybdenum) is easy to trim with scissors and shape by hand. Can be formed into magnetic barriers on VDTs, buried wiring, speaker and more. With snug fitting shapes, get as much as 70% attenuation of the magnetic field with one thickness. Use multiple layers for even greater reduction. The shield shape plays an important role in the reduction of the of the magnetic sources. Closed shapes are the most effective for magnetic shielding such as cylinders.
    We recommend the use of an accurate gaussmeter made by Integrity Design to determine the proper shape and positioning of the shielding, and to confirm that the fields have been adequately reduced.
    CAUTION: Foil has sharp edges, We suggest to wear  special gloves

    IDR-801 ( 0.004" thick,12" length, 16" wide): $29.95/linear ft

    Minimum order is: 2 ft
    Call for Quantity discount Pricing:


    Specifications

    • Provides protection against AC & DC magnetic field radiations.
    • 0.004" thick or higher
    • one layer of shielding provides 50-60% attenuation at 60 Hz or even more.

    F W Bell Bench Top Gaussmeters : AC/DC Magnetic Measurement

    For more information & Technical support, please contact Dr. Hanna @ (800) 719 2315
    Email:  saba@integritydesign.com

    Model 6010 Hall Effect Gaussmeter full details

    Model 6010 Hall Effect Gaussmeter: IDR-fw6010

    Price - $ 2350.00
    Status: in Stock


    Probes currently are in Stock:

    HAD61-2508-05-T: $807 (8" axial probe)
    STD61-0404-05: $506 (4" transverse probe)
    MOW61-2506-05: $800 (Magnaprobe)
    STD61-0202-15: $675 (Ultra thin probe probe)
    HTD61-0608-05: $720 (8" transverse probe)
    Probes are sold separately

    Please contact us to choose the right probes
    Description

    The Model 6010 Hall-effect gaussmeter represents the latest innovations and state-of-the-art designs from the world leader in magnetic measuring equipment. F.W. Bell's exclusive Dynamic Probe Correction feature, along with temperature compensation,  allows measurements up to 300 kG with a basic accuracy of 0.25%.

    A picture of model 6010 hall Effect Gaussmeter

    Key features include Peak Hold, Max/Min Hold, Auto Zero, Auto Range, Relative Mode and Temperature measurement.  The Model 6010 allows the user to select Gauss, Tesla or Ampere/Meter readings. The Model 6010 also features a corrected analog output (± 3 V Full Scale for each range), an RS-232 communications port, a rechargeable battery and probe temperature compensation. The Temperature measurement feature, used with the new 6000 Series 5th Generation Hall-effect gaussmeter probes, allow the user to take temperature readings (-40 0C to +85 0C) while monitoring the magnetic field.  The easy-to-read large format alpha-numeric LCD, with dual 3 3/4 digit read outs, gives the user magnetic field flux density readings while also displaying temperature (or Peak Hold, or Max/Min Hold)

    User prompts on the custom formatted LCD allow fast, simple push button operation. All models come equipped with a zero gauss chamber, accessory hard case, built-in rechargeable battery, quick reference card and instruction manual. A wide range of axial and transverse probes are available as options & sell separately.

    Applications for the Model 6010 range from the most sensitive laboratory environments to rugged industrial settings. All instruments are fully CE compliant.

    Features

    • Large Format LCD
    • Dual 3 3/4 digit readouts
    • Temperature measurement (-40 0C to +85 0C)
    • Displays in Gauss, Tesla or Ampere/Meters
    • Peak Hold
    • Max/Min Hold
    • Corrected Analog Output
    • Auto Range with resolution of 1 mG
    • Temperature Compensated Probes
    • Auto zero/Auto calibration
    • RS-232 Interface
    • Rechargeable Battery
    • Compatible with Model 9200 probes
    • Frequency Response from DC-20KHZ
    • Ranges 300 mG, 30 G, 300 G, 3 KG, 30 KG, 300 KG
    • CE Compliant


    A picture of FWBELL model 8030 hall Effect Gaussmeter  Related Links:

    7010 Single Channel...

    7030 Three Channel...

    download firmware Update...

    7000 Series Probes...

    8000 Series

    Advanced Hall Effect Gauss/Tesla-Meters

    Exactly What You've Been Waiting For!

    The F.W.Bell The Model 8010 single-channel GAUSS TESLA METER from F. W. Bell leads the way for advanced Hall Effect magnetic measuring technology. The easy-to-use front panel programming feature incorporates the latest in user control operations. And the 8010 is capable of measuring and displaying seven different parameters, including flux density, frequency, temperature, min, max, peak and valley. This high accuracy instrument is fully equipped to meet most magnetic measuring applications. Bell's dynamic probe correcting software increases the 8010 measurement capabilities to make it the most versatile magnetic measuring tool in the world. Key features include high-resolution, high-accuracy and high-speed with a large TFT color LCD display with backlighting. The 8000 features 50 kHz frequency response, temperature and frequency measurements, auto zero, auto range, hold functions for peak, valley, min and max, corrected and uncorrected outputs. The Model 8010 provides the user with gauss, tesla, Oe, A/m, IEEE-488, RS-232 , Ethernet RJ-45 and USB communications ports and classifier output. The 8010 operates with Bell's sixth generation Hall effect probes. These probes provide temperature compensation and measurement readings (0°C to +70°C) while monitoring the magnetic field. The easy-to-read TFT Color LCD with Backlighting is easily viewable in most light conditions and can be customized to meet a user's specific needs. Applications range from basic magnetic measuring to sensitive complicated three-axis vector summing requirements. The F.W. Bell Model 8010 is fully CE-compliant. seven different parameters per channel -- 27 total parameters for the 7030 three-channel model.

    The single-channel 7010 and three-channel 7030 models are high accuracy instruments fully equipped to meet most all magnetic measuring applications. And F.W. Bell's exclusive dynamic probe correcting software actually increases the 7000 Series measurement capabilities to make it the most versatile magnetic measuring tool in the world.

    Key features include high-resolution, high-accuracy and high-speed with a bright 1/4 VGA display.  The 7000 Series  features 50 kHz frequency response, a 100 samples-per-second update rate, temperature and frequency measurements, Auto Zero, Auto Range, Hold functions for Peak, Valley, Min and Max, corrected and uncorrected outputs for each  channel and Vector Summation and angle (three-channel model). The 7000 Series provides Gauss, Tesla, Oe and A/m, as well as IEEE-488, RS-232 communications ports and Classifier output, and are fully CE compliant.

    Features

    • TFT Color LCD Display with Backlighting
    • WVGA, 600 x 480 pixels
    • Automatic probe coefficient correction
    • Displays in Gauss, Tesla,amp/meter or Oe
    • Fully menu-driven for easy operation
    • Automatic probe coefficient correction
    • EEE-488, RS-232, Ethernet RJ-45 and USB interface
    • Peak/Valley capture
    • Relative mode
    • IEEE-488 and RS-232 interface
    • CE compliant
    • Manufactured to ISO 9000 standards
    • Comprehensive Technical Support

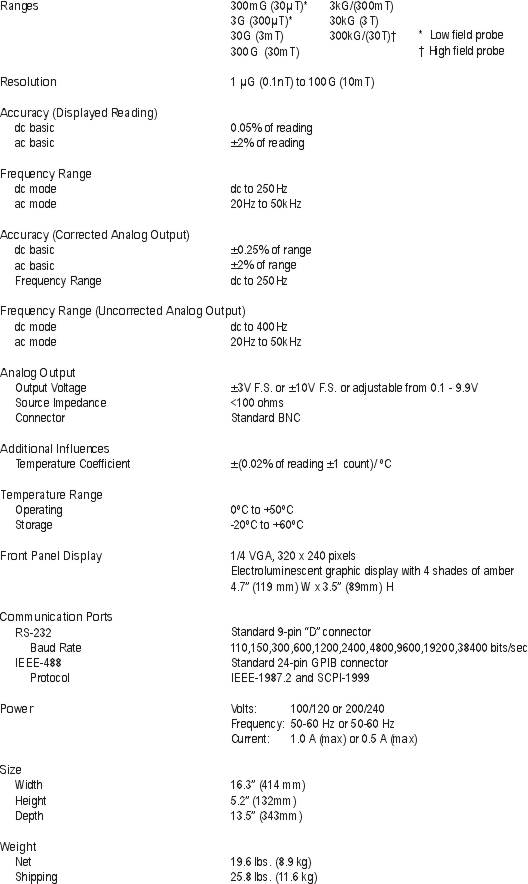

    Product Details & Specifications

    Instrument Accessories

    7000 Series probes  - A complete line of precision probes, with enhanced performance on the 7000 series instrument.

    7000 Series Soft Carry Case - A rugged case with locations for manual and probes.

    Reference Magnets - Used to verify the calibration of a Gauss/Tesla-Meter.



    Technical Support for the 7000 series - Online technical support resources for the 7000 series, including manuals, FAQs, firmware upgrades & utilities. Or contact our Dr.  Hanna @ (802) 872 7116



    8010 Single Channel Advanced Gauss/Tesla- Meter.....$3950.00
    Status: in Stock
    STF81-0404-10(4" transverse probe): $700 Status: In stock

    Note: Probes are sold separately

    Please contact  us to help you choose the right probes

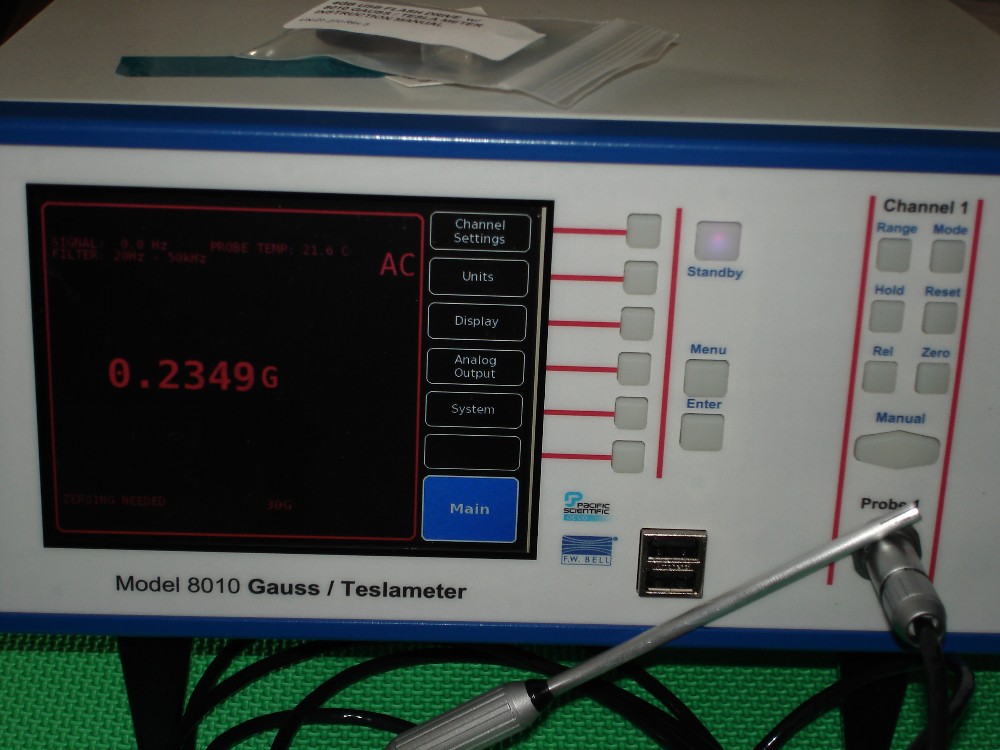

    The Model 8010 single-channel Advanced Gauss/Tesla-Meter from F.W. Bell is capable of simultaneously measuring and displaying seven different parameters per channel -- flux density, frequency, temperature, min, max, peak and valley.

    Key features include high-resolution, high-accuracy and high-speed with a large graphic  electroluminescent display.  The 8010 provides 50-kHz frequency response, temperature and frequency measurements, Auto Zero, Auto Range, Hold functions for Peak, Valley, Min and Max, corrected and uncorrected outputs for  each channel and Vector Summation and angle. The Model 8010 provides the user with gauss, tesla, Oe, A/m, IEEE-488 and RS-232 communications ports and Classifier output.

    The 8010 operates with Bell's fifth generation Hall Effect probes.  These probes provide temperature compensation and  measurement readings (-40°C to +100°C) while monitoring the magnetic field.  Applications range from basic magnetic measuring to sensitive complicated three-axis vector summing requirements.

    Front Panel View

    Rear Panel View

     More Information:

    Features

    • Bright 1/4-VGA readout
    • Fully menu-driven for easy operation
    • Large electroluminescent graphic display
    • Auto Zero and Auto Calibration
    • Over 100 standard probes available
    • Automatic probe coefficient correction
    • Displays in Gauss, Tesla, Amps/meter or Oe
    • Peak/Valley capture
    • Relative mode
    • IEEE-488 and RS-232 interface
    • CE compliant
    • Manufactured to ISO 9000 standards
    • Comprehensive Technical Support

    Specifications



    8030 Three Channel Advanced Gauss/Tesla-Meter...........$5950.00
    Status: 3 units in stock
    ZOA83-3208-10-T:$4325. 00(3-axis probe) Status: in stock

    Note: Probes are sold separately

    Please contact us to help you choose the right probes

    A picture of FWBELL model 8030 hall Effect Gaussmeter

    The Model 8030 three-channel Advanced Gauss/Tesla-Meter from F.W. Bell is capable of simultaneously measuring and displaying seven different parameters per channel -- flux density, frequency, temperature, min, max, peak and valley.  With its vector summation feature, the 8030 can measure and display a total of 27 different parameters.

    Key features include high-resolution, high-accuracy and high-speed with a large graphic  electroluminescent display.  The 8030 provides 50-kHz frequency response, temperature and frequency measurements, Auto Zero, Auto Range, Hold functions for Peak, Valley, Min and Max, corrected and uncorrected outputs for  each channel and Vector Summation and angle. The Model 8030 provides the user with gauss, tesla, Oe, A/m, IEEE-488 and RS-232 communications ports and Classifier output.

    The 8030 operates with Bell's fifth generation Hall Effect probes.  These probes provide temperature compensation and  measurement readings (-40°C to +100°C) while monitoring the magnetic field.  Applications range from basic magnetic measuring to sensitive complicated three-axis vector summing requirements.

    Front Panel View

    Rear Panel View



    Features

    • Bright 1/4-VGA readout
    • Fully menu-driven for easy operation
    • Large electroluminescent graphic display
    • Auto Zero and Auto Calibration
    • Over 100 standard probes available
    • Automatic probe coefficient correction
    • Displays in Gauss, Tesla, Amps/meter or Oe
    • Peak/Valley capture
    • Relative mode
    • IEEE-488 and RS-232 interface
    • CE compliant
    • Manufactured to ISO 9000 standards
    • Comprehensive Technical Support

    Specifications


    Back to the Top

    Integrity's home page-magnet
